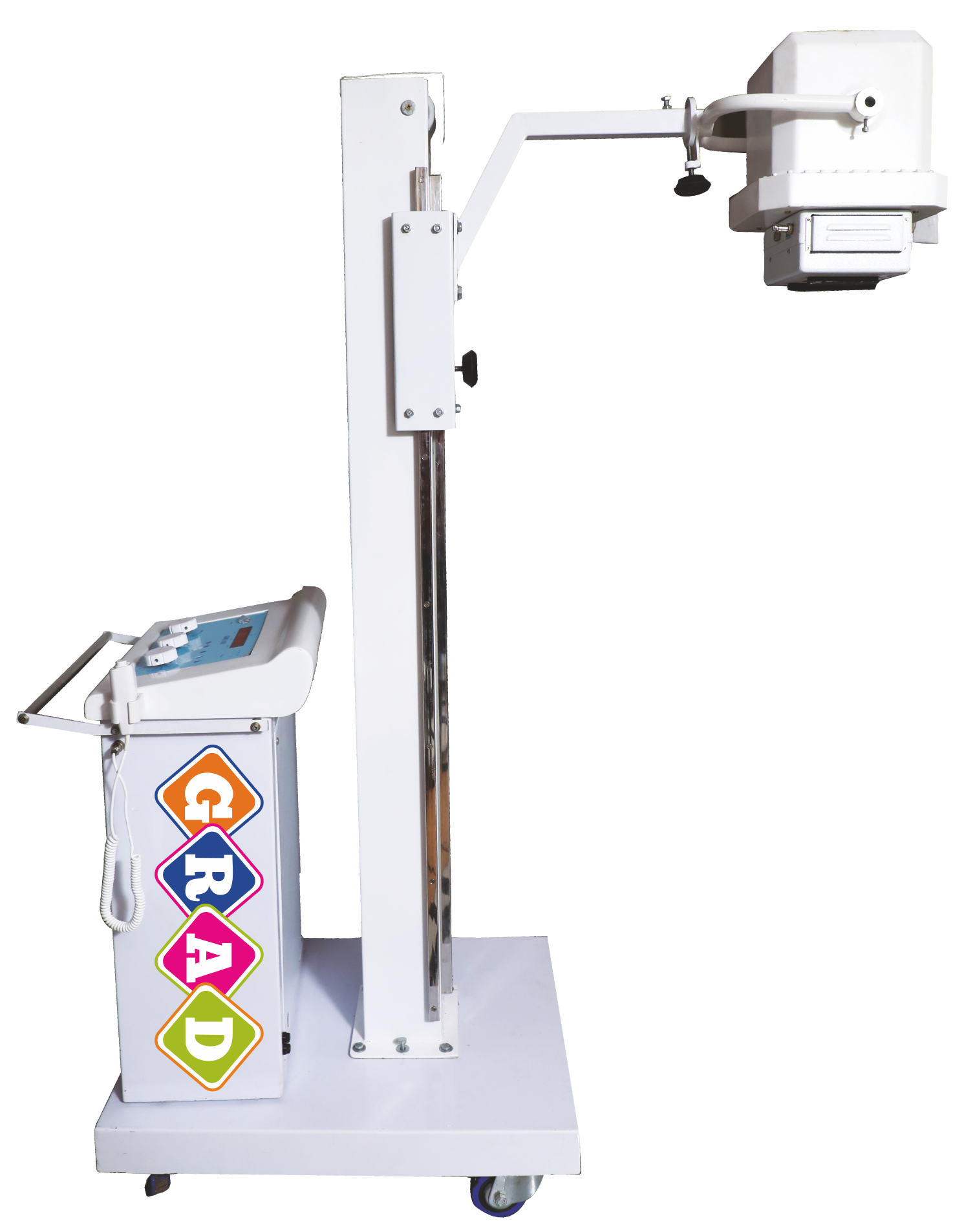

Description | GRAD 60 |
Radiography Rating | 15-60mA, stations 45kVp to 100 kVp in 15 steps |
Output | 5KW |
Rectification | Full Wave Rectified |
Timer | 0.06 to 5 sec |
Digital Display | Digital Display of mAs, kV & mA |
X-Ray Tube | XD-3/Imported |
Power Supply | 230 Voltage AC, 15 Amps |
Line Regulation | 10% 0.6max |
Protection | Electronic overload Protection |
Tube Stand | Spring Balance/Counter Balance Mobile |
Send Enquiry Download |
Grade LF Series is the total Solution for radiography, Fluoroscopy and shot spot Film device, with use of image intensifier systems of at panel digital detector, making if ideal for all diagnostic procedure and investigation for human care.
